C款-塑料頭氣動螺紋絲扣角座閥技術參數
介質溫度：-20°C~+150°C
環境溫度：-20°C~+60°C
公稱壓力：1.6MPa
控制氣體：中性氣體，空氣
氣源壓力：0.3~0.8MPa
規格：DN10-DN80
閥體材質：304.316L
閥座材質：PTFE
閥桿材質：304
密封圈材質：NBR
適用介質：水、蒸汽、油、中性氣體
介質溫度：-20°C~+150°C
環境溫度：-20°C~+60°C
公稱壓力：1.6MPa
控制氣體：中性氣體，空氣
氣源壓力：0.3~0.8MPa
規格：DN10-DN80
閥體材質：304.316L
閥座材質：PTFE
閥桿材質：304
密封圈材質：NBR
適用介質：水、蒸汽、油、中性氣體
TECHNICAL PARAMETERS
Medium temperature:-20°C~+150°C
Ambient temperatur:-20°C~+60°C
Nominal pressure:1.6 MPa
Control gas, gas, air
Air pressure:0.3~0.8 MPa
Specification:DN10-DN80
The valve body material:304.316L
seat material:PTFE
Stem material:304
Sealing ring material:NBR
Applicable medium: water vapor oil neutral gas
Medium temperature:-20°C~+150°C
Ambient temperatur:-20°C~+60°C
Nominal pressure:1.6 MPa
Control gas, gas, air
Air pressure:0.3~0.8 MPa
Specification:DN10-DN80
The valve body material:304.316L
seat material:PTFE
Stem material:304
Sealing ring material:NBR
Applicable medium: water vapor oil neutral gas

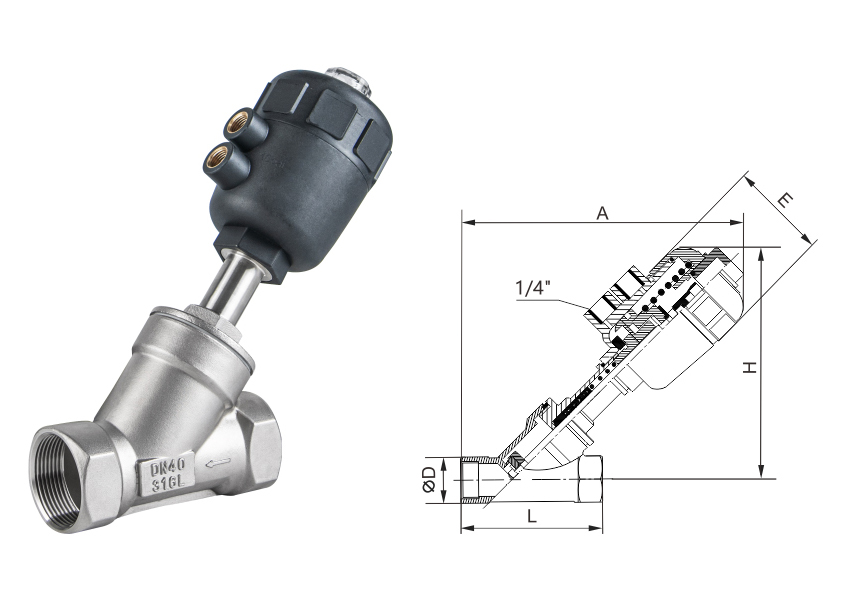

| 型號 model |
L | A | H | D | E | 執行器 Actuator |
| DN10 | 85 | 172 | 120 | 3/8" | 64 | Φ50 |
| DN15 | 85 | 172 | 137 | 1/2" | 64 | Φ50 |
| DN20 | 95 | 178 | 145 | 3/4" | 64 | Φ50 |
| DN25 | 105 | 215 | 175 | 1" | 80 | Φ50/Φ63 |
| DN32 | 120 | 220 | 180 | 11/4" | 80 | Φ63 |
| DN40 | 125 | 228 | 190 | 11/2" | 80 | Φ63/Φ80 |
| DN50 | 150 | 238 | 200 | 2" | 80 | Φ63/Φ80 |
| DN65 | 185 | 282 | 300 | 21/2" | 100 | Φ80/Φ100 |
| DN80 | 208 | 368 | 340 | 3" | 126 | Φ100 |
